The Visio VBA program flowcharts

This section provides the following VBA program flowcharts:

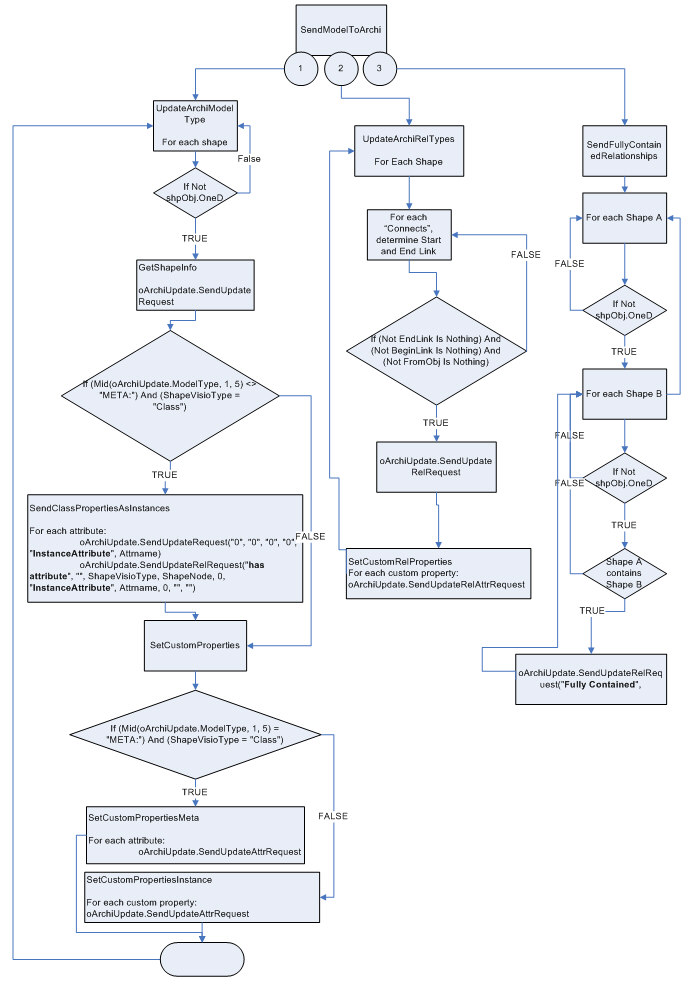

Send Model to Archi

AGMCGIVBSend

up

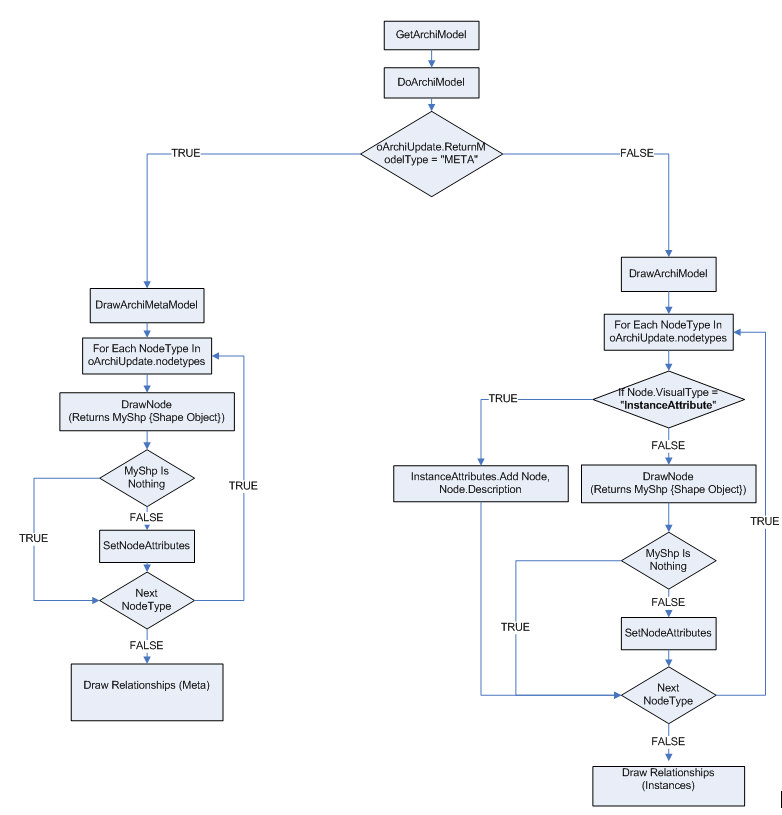

Retrieve Model from Archi

AGMCGIVBRetrieve

up

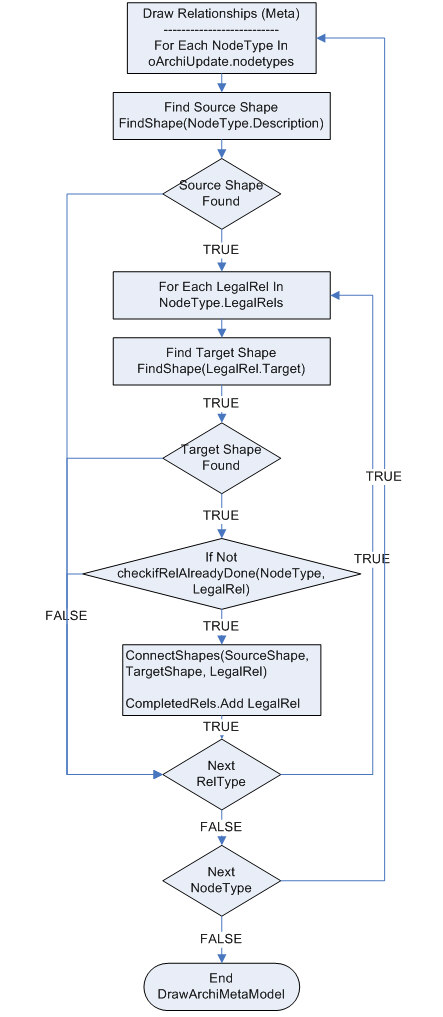

Draw Meta Relationships

AGMCGIVBMeta

up

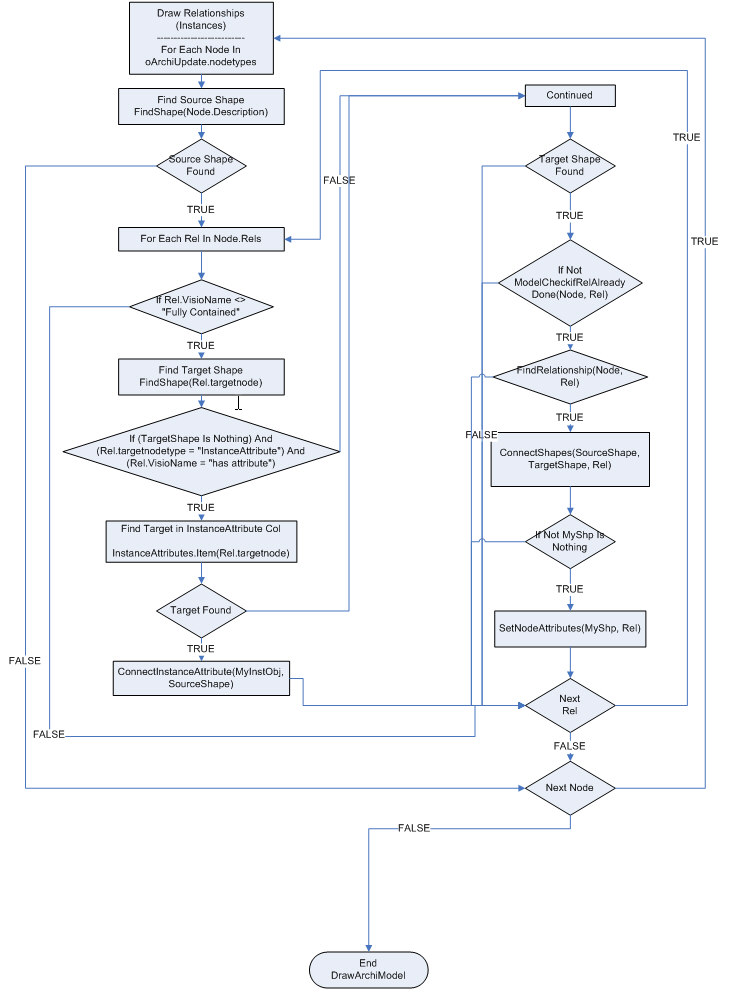

Draw Instance Relationships

AGMCGIVBInstance

up

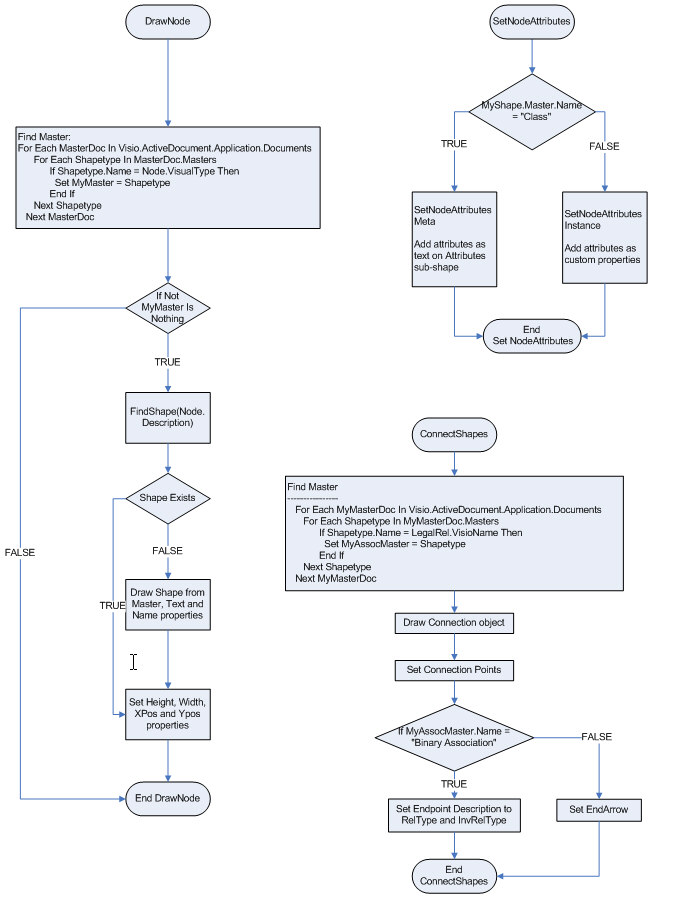

Utility Subroutines

AGMCGIVBUtility
